DV2Plus Viscometer

Shop for AMETEK Brookfield's DVPlus Viscometer with innovative features

Global Standard in Viscosity Control

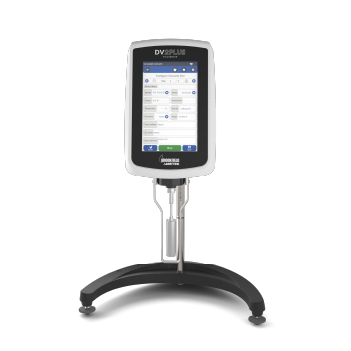

DV2Plus Viscometer is the successor to Brookfield’s most popular viscometer, the DV2T. It features a modern 7” touchscreen, expanded 740-speed control, and optional Bluetooth connectivity.

7” Full-Color Touchscreen

High-resolution display (800x480) with wide viewing angle and intuitive interface

Favorites Menu

Save and access your most-used test methods in just a tap

Viscosity Wizard:

Guided setup for complex tests, now made simple

Post-Test Graphing with PDF Export:

Instantly generate torque vs. time graphs and print results

Integrated Connectivity

4 USB-A ports, 1 USB-B port, and Bluetooth for PC connection, printers, barcode scanners, and more

740 Speeds for Ultimate Flexibility

Ultra-fine control across a full range of testing applications

Built-in Gel Timer Functionality:

Ideal for resins, epoxies, and curing systems

HPQA Integration:

Full integration with the HPQA, Helipath Quick Action Stand for faster, more repeatable testing.

Performance You Can Trust:

Accuracy: ±1.0% of range
Repeatability: ±0.2%
Compliance: Optional ISO 17025 Calibration, NIST traceable standards, 21 CFR Part 11 Compliance – ready with DV360

DV2Plus Instrument
Spindles (LV = 4, RV/HA/HB = 6)
Carrying Case (not applicable to HA or HB models)
Lab Stand
Free 30-Day Trial Software Download
Spindle Guard Leg (LV/RV)

DV2PLUS LV
- Viscosity Range: 1† – 6M
- Speed (RPM): 0.1 – 200 (740 steps)
- Included Spindles: 4 LV Spindles
DV2PLUS RV
- Viscosity Range: 100†† – 40M
- Speed (RPM): 0.1-200 (740 steps)
- Included Spindles: 6 RV Spindles
DV2PLUS HA
- Viscosity Range: 200†† – 80M
- Speed (RPM): 0.1-200 (740 steps)
- Included Spindles: 6 HA Spindles
DV2PLUS HB
- Viscosity Range: 800†† – 320M
- Speed (RPM): 0.1-200 (740 steps)
- Included Spindles: 6 HB Spindles

Notes:
**† Achievable with UL Adapter
** †† Minimum with RV/HA/HB-1 Spindle

Small Sample Adapter: Ideal for precise measurements of small sample volumes.
UL Adapter: Designed for accurate low-viscosity measurements.
Spiral Adapter: Perfect for analyzing complex fluid behaviors.
DIN Adapter: Ensures compatibility with DIN standard viscometers.
Ball Bearing Suspension: Available for RV/HA/HB models, ensuring smooth and precise operation.
Magnetic Spindle Coupling System: Upgrade to a magnetic coupling for easy and secure spindle attachment.
Viscosity Standards: Maintain measurement accuracy with certified reference standards.
Temperature Bath: Maintain consistent sample temperatures for reliable results.

Barcode Scanner (USB-A)
HPQA, Helipath Quick Action Stand

DV360 (Optional)

DV360 Standard Edition:

User-friendly interface
Guided test creation with extensive testing capabilities
- Extensive testing capabilities including Yield Testing, Gel Time, Calibration Verification, Thix Index, Curing Tests and Custom Tests
Access to mathematical models like Bingham, Casson, Power Law, Casson NCA/CMA, IPC Paste and Herschel-Bulkley
Advanced analytical tools with customizable reporting and data comparison
Manage water baths and temperature controllers directly through the software

DV360 Advanced Edition – Standard Edition features plus more:

21 CFR Part 11 Compliance
Controlled feature access with unlimited users
Efficient signing workflow and comprehensive login policies
Full audit trail and LIMS connectivity
Secure non-editable PDF reports
Control multiple instruments from one computer
Active Directory compatibility

DV Create (Optional):

Seamlessly create programs from your PC or convert DV2T/DVNext files to DV2Plus
Enhance viscosity test efficiency with real-time monitoring, data saving, and automatic data transfer
Utilize datalogging and export functionality
Extend capabilities with up to 25 steps programs for advanced simulation and analysis
Connect via USB and Bluetooth

Please browse our Resource Library for more related documents

WHY CHOOSE THE DV2PLUS VISCOMETER?

Touchscreen Simplicity & Smarter Interface
7-Inch full-color PCAP touchscreen display provides 800x480 resolution with a wide viewing angle. The modern, clean interface simplifies testing while offering real-time test insights for optimal monitoring of:
- Viscosity (cP or mPa•s)
- Temperature (°C or °F)
- Shear rate/stress
- % Torque
- Spindle/speed
- Step program status
Built for Performance
Accuracy of ±1.0% and repeatability of ±0.2% ensure precise, dependable measurements across a vast range of viscosities – from thin inks to heavy industrial pastes.
Intelligent Features for Today’s Labs:
- Viscosity Wizard for guided test setup
- Post-Test Graphing (torque vs. time) and PDF print options
- Favorites Menu for quick access to your most-used test methods
- Gel Timer Functionality built into the standard model
- Automated Oscillation Testing
- Digital Leveling for easy setup
Advanced Control & Connectivity
DV2Plus allows for ultra-fine control of test conditions with 740 speeds. Bluetooth connectivity and USB-A/B ports enable seamless integration with PCs, bar code scanners, printers, and future accessories.
Easy Software Integration (Optional):
- DV360™ software to achieve the most advanced viscosity testing and optional 21 CFR Part 11 Compliance.
- DV Create™ software to build up to 25-step methods, live-monitor tests via Bluetooth, or USB, and ensure compatibility with legacy DV2T files.
