RSX Coaxial Cylinder Rheometer

Comprehensive Viscosity Profiling and Flow Behavior Analysis

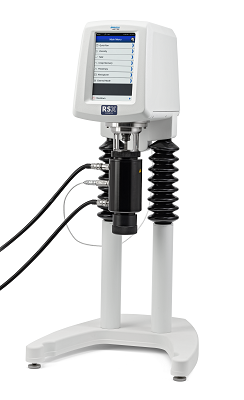

AMETEK Brookfield RSX Coaxial Cylinder Rheometer is a state-of-the-art instrument designed for superior viscosity profiling, thixotropic response, yield stress determination, and creep analysis. With its advanced features, the RSX-CC Rheometer is perfect for quality control laboratories requiring high throughput and precise, repeatable measurements across a wide range of applications.

Comprehensive Flow Behavior Analysis:
Utilize controlled shear stress/shear rate operation to thoroughly analyze flow behavior, including viscosity profiling, thixotropic response, creep analysis, and yield stress determination.
Large User-Friendly Touch Screen:
Intuitive touch screen interface simplifies operation, making it easy to navigate and control test parameters.
Quick Connect Coupling System:
Effortlessly attach and detach spindles with the quick connect coupling system, reducing setup time.
Auto Spindle Recognition:
The spindle barcode feature automatically recognizes the spindle, ensuring accurate data entry and streamlined operation.
Small Sample Size:
Conduct tests with very small sample volumes, enabling rapid setup and cleanup, ideal for environments with limited sample availability.
Rugged Design:
Built for durability, this instrument is designed to withstand the rigors of the production floor while maintaining precision and reliability.
Increased Torque Motor:
Equipped with an enhanced 200 Nm torque motor, this instrument can test even the toughest samples, ensuring comprehensive analysis across a wide range of materials.
Motorized Stand:
Easily adjust the height with the motorized stand, providing convenience and precision during testing.
Advanced Temperature Control:
Achieve precise temperature regulation from -20°C to 180°C with options for direct immersion in a bath or external circulation using the FTKY3 water jacket.
High-Precision Cylindric Geometries:
The use of cylindric geometries ensures the most accurate measurement results, particularly in low-viscosity ranges.

Adhesives:
Accurately measure the rheological properties of adhesives, ensuring consistent application and performance.
Biomass:
Analyze the flow behavior of biomass materials, essential for optimizing processing conditions.
Food and Beverages:
Perform viscosity and texture measurements to maintain quality control in food production.
Gypsum:
Test gypsum slurries to optimize the production process and ensure product quality.
Pharmaceuticals:
Ensure the stability and performance of pharmaceutical formulations through precise rheological testing.
Chemical Production:
Measure the flow properties of chemicals to maintain product consistency and quality.
Paints and Coatings:
Analyze the rheological behavior of paints and coatings to ensure correct application and performance characteristics.
Petroleum:
Test the viscosity and flow behavior of petroleum products under various conditions.

What’s Included

Instrument
Power cord
Concentric Cylinder Adapter
Accessory Kit
- USB cord
- Screen Protector
- Bubble Level

CCT-DG
- Viscosity Range: 0.0006 – 8k Pa·s
- Max. Shear Stress: 0.043 – 4344 Pa
- Sample Volume: 15.7 mL
CCT-40
- Viscosity Range: 0.004 – 55k Pa·s
- Max. Shear Stress: 0.0215 – 2148 Pa
- Sample Volume: 68.5 mL
CCT-25
- Viscosity Range: 0.027 – 354k Pa·s
- Max. Shear Stress: 0.013 – 1289 Pa
- Sample Volume: 16.8 mL
CCT-14
- Viscosity Range: 0.151 – 2.01M Pa·s
- Max. Shear Stress: 0.013 – 1297 Pa
- Sample Volume: 3.4 mL
CCT-8
- Viscosity Range: 0.813 – 10.83M Pa·s
- Max. Shear Stress: 0.013 – 1287 Pa
- Sample Volume: 1.0 mL

Water Jacket for Temperature Control:
Ensures precise thermal management of samples during testing.
Bob (Spindle) and Chamber:
Expand your testing capabilities with additional spindles and chambers designed for various sample types.
Vane Spindle:
Ideal for testing soft solids and other complex materials.
Thermosel System:
Provides enhanced temperature control for high-temperature testing applications.
Soft Solids (SST) Sample Table:
Tailored for testing soft solids with precision and accuracy.
Rheo3000 Software:
Allows for advanced PC control and comprehensive data acquisition/analysis of multiple test files, offering expanded functionality for complex testing scenarios.

Brochure

WHY CHOOSE THE RSX COAXIAL CYLINDER RHEOMETER?

The RSX Coaxial Cylinder Rheometer offers unmatched flexibility, precision, and ease of use, making it an essential tool for quality control and advanced rheological research. Its robust design, high torque motor, and comprehensive temperature control options deliver reliable and repeatable results across a wide range of industrial applications.
