Laboratory Viscometers

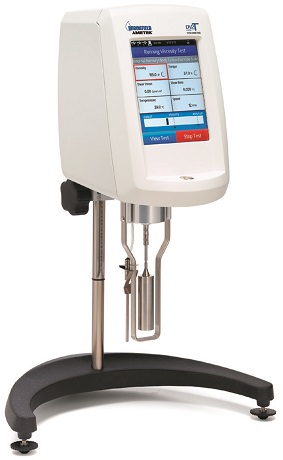

DV2T Touch Screen Viscometer

AMETEK Brookfield's DV2T touchscreen viscometer offers advanced options for easy viscosity test and data gathering

Efficient and Versatile Viscometer for Precise Viscosity Measurements

DV2T Viscometer features a 5-inch color touch screen display that guides the user through the process of test creation and data gathering, making viscosity measurements fast and easy. With powerful programming capabilities and advanced data analysis features, the DV2T is ideal for laboratories requiring precision, versatility, and ease of use.

PCN Notice
Important: DV2T will be discontinued December 31, 2025. Calibration and repair services will continue pending parts availability. Customers are encouraged to transition to the new DV2Plus Viscometer for enhanced performance and long-term support.

5-Inch Full Color Touch Screen Display:
Enjoy a vibrant, easy-to-navigate interface that supports multiple languages, making it accessible to users worldwide.
Comprehensive Display Information:
Monitor critical data in real-time, including viscosity (cP/mP·s), temperature (°C/°F), shear rate/stress, % torque, spindle/speed, and step program status, all conveniently displayed on screen.
Enhanced Security:
Customize user access levels and implement password protection to secure your testing environment, ensuring that only authorized personnel can operate the instrument.
Built-In Testing Options:
Take advantage of built-in features such as timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, and on-screen data comparison to streamline your testing processes.
Auto Range Function:
Automatically displays the maximum viscosity measurable with any spindle/speed combination, simplifying setup and ensuring accurate readings.
USB PC Interface:
Connect to a PC for optional computer control and automatic data gathering, enhancing efficiency and data management capabilities.
Custom Test Programs:
Easily download and run custom test programs using the included PG Flash software, allowing for tailored testing protocols.
Front-Facing Bubble Level:
Ensure your instrument is perfectly leveled with the conveniently located front-facing bubble level, improving accuracy.
Built-In Temperature Probe:
Obtain precise temperature measurements directly within your samples, improving the reliability of your viscosity data.
High Accuracy and Repeatability:
Achieve precise results with an accuracy of ±1.0% of range and repeatability of ±0.2%, ensuring consistent and reliable data.
17025 Calibration (Optional):
Optional for ISO 17025 calibration to meet stringent quality and calibration standards.
NIST Traceable Viscosity Standards:
Maintain compliance and accuracy with viscosity standards that are traceable to NIST.
Additional Options Available: Enhance your instrument's functionality with optional accessories such as a magnetic coupling system, durable ball bearing suspension system, quick action lab stand, and RheocalcT/DV360 software.

DV2TLV Model:

Minimum Viscosity: 1 cP

Maximum Viscosity: 6M (mPa·s)

RPM Range: 0.1 - 200

Number of Speed Increments: 200

DV2TRV Model:

Minimum Viscosity: 100 cP

Maximum Viscosity: 40M cP (mPa·s)

RPM Range: 0.1 - 200

Number of Speed Increments: 200

DV2THA Model:

Minimum Viscosity: 200 cP

Maximum Viscosity:80M cP (mPa·s)

RPM Range: 0.1 - 200

Number of Speed Increments: 200

DV2THB Model:

Minimum Viscosity: 800cP

Maximum Viscosity: 320M (mPa·s)

RPM Range: 0.1 - 200

Number of Speed Increments: 200

Spring Torque

DV2TLV Model:

Dyne-cm: 673.7

Milli Newton-m: .0673

DV2TRV Model:

Dyne-cm: 7,187.0

Milli Newton-m: 0.718

DV2THA Model:

Dyne-cm: 14,374.0

Milli Newton-m: 1.4374

DV2THB Model:

Dyne-cm:: 57, 496.0

Milli Newton-m: 5.7496

Instrument: DV2T Touch Screen Viscometer
Spindles: 6 spindles (RV/HA/HB) or 4 spindles (LV)
PG Flash Software: For easy program generation and uploading
RTD Temperature Probe: Ensures precise temperature control
Spindle Guard Leg*: Stabilizes the spindle during viscosity assessments
Lab Stand: Model G for stable and consistent testing
Carrying Case: For convenient transport and protection of the instrument

*Not applicable to HA or HB models

Viscosity Standards: Ensure accurate and reliable measurements with certified reference fluids.
VisCal Kit: A comprehensive calibration kit to maintain your instrument’s precision.
RV/HA/HB-1 Spindle: Versatile spindle options for a wide range of viscosity measurements.
Temperature Bath: Maintain consistent sample temperatures for precise testing results.
Small Sample Adapter: Perfect for accurate viscosity measurements with limited sample volumes.
UL Adapter: Designed for low-viscosity measurements, enhancing the versatility of your instrument.
Thermosel Heater: Ideal for high-temperature viscosity testing.
HPQA Stand with T-bar Spindles: Automatically measure viscosity at multiple points within the sample.
Spiral Adapter: For advanced analysis of complex fluids.
DIN Adapter: Ensure compatibility with DIN standard viscometers.
Quick Connect/Extension Links: Simplify spindle changes and extend the reach of your setup.
Vane Spindles: For testing non-Newtonian fluids and materials with yield stress.
RheocalcTDV360 Software: Streamline data collection and analysis with this powerful software.
Quick Action Lab Stand: Provides quick and easy adjustments for your instrument.
Ball Bearing Suspension (RV/HA/HB): Ensures smooth and precise operation in high-torque applications.
Magnetic Spindle Coupling System: Simplify spindle attachment and removal with a secure magnetic coupling system.

WHY CHOOSE DV2T RHEOMETER?

Precision and Reliability
Achieve consistent, accurate results with an accuracy of ±1.0% of range and repeatability of ±0.2%.
Ease of Use
The touch screen interface and programmable features make it easy to set up and run tests, while ensuring repeatability and accuracy.
Versatility
Suitable for a wide range of applications, from low viscosity fluids like inks and oils to high viscosity materials like asphalt and caulking compounds.
